Setting up Safety Risk Levels

Risk analysis of a SIF or HAZOP failure mode results in a risk level score. This numeric value, usually on an ascending scale between 0 and 4, is a measure of the amount of risk inherent in the failure. Safety provisions can then be assigned to the failure mode. Each provision’s safety integrity level (SIL) value can be used to calculate a reduction in risk.

This topic explains how to set up risk levels.

To Set up a Risk Level

1.	On the site’s Safety Management view, select the Settings tab, and the Safety Management Settings node in the tree.

Tip: You can also select the site’s Administration menu and then Safety Management. The Safety Management Settings dialog appears.

2.	Select the Risk Levels tab. This tab shows any levels that have been defined for the site.

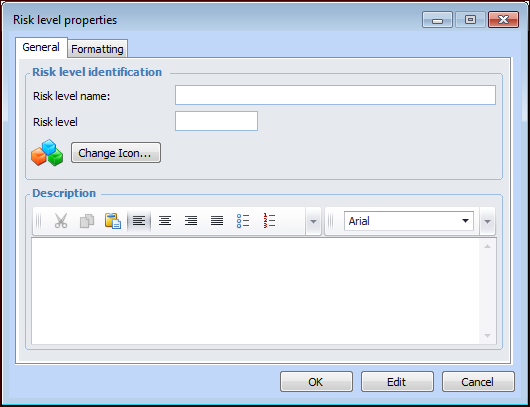

3.	Click New. The Risk Level Properties window appears.

4.	Provide a name for the risk level.

5.	Assign a numeric value to the level, usually from 0 to 4.

6.	Provide information about the risk level’s use or purpose in the Description box.

7.	Select the Formatting tab to adjust the appearance of risk levels listed in configurations and shown in charts.
