Setting up Collection Sets for Dynamic Routes

A dynamic inspection route is defined on a standard task and comprises a list of assets (ordered in walk-around sequence) and a set of criteria for including the assets’ indicators. When a list of indicators to read is generated using the standard task, indicators with properties that match the criteria are included.

The indicator’s collection set is one such criterion. You can create collection sets as required by your organization to identify indicators for inclusion on the route.

When setting up a collection set, you can select a font and color for showing the data in charts in KPIs, for example.

To Create Collection Sets

1.	From the Site window, select the Inspection Management view, the Settings tab, and then the Indicators tab. Select the Indicator Settings node in the tree.

Tip: You can also click the Administration menu, Inspection Management Settings, and then Indicator Management. The Indicator Settings window appears.

2.	Select the Data Collection tab and the Collection Sets tab.

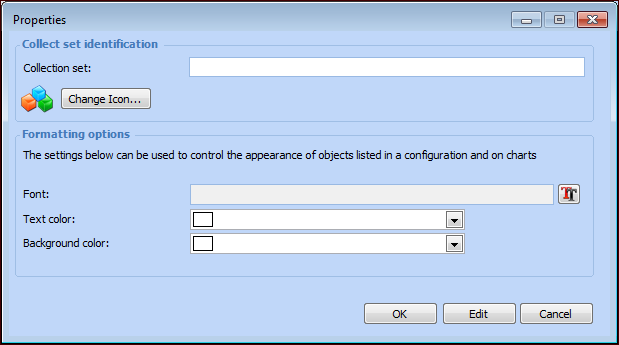

3.	For each collection set that you wish to add, click New. The properties dialog appears.

4.	Provide a name for the collection set.

5.	To change the graphic that identifies the set, click Change Icon, select a graphic, and click OK.

6.	In the formatting options, you can select the font, text color, and background color to control the appearance of the collection set when it is shown in tables and charts.

7.	Click OK to close the dialog. The collection set is added to the table.
