Setting the Numbering Format for Analyses, Failure Modes, and Unwanted Situations

Document numbering settings create the alpha-numeric identifiers that distinguish one document from another (for example, work orders). Within each site, every document must have a unique identifier. If necessary, you can enter a site-specific prefix or suffix to a type of document to ensure that their numbers are unique throughout the enterprise.

In strategy development analysis settings, you can set the format to use for analysis, failure mode, and unwanted situation numbers. You can also see the number that will be assigned to the next new object.

To Set the Numbering Format for Analyses

1.	From the Site window, select the Strategy Development view, Settings tab and then the Strategy Development tab. Select the Strategy development settings node in the tree.

Tip: You can also select the Administration menu, Strategy Development Settings, and then Strategy Development. The Strategy Development Management Settings dialog appears.

2.	Click Edit to modify the site settings. The Edit button is replaced by the Save button.

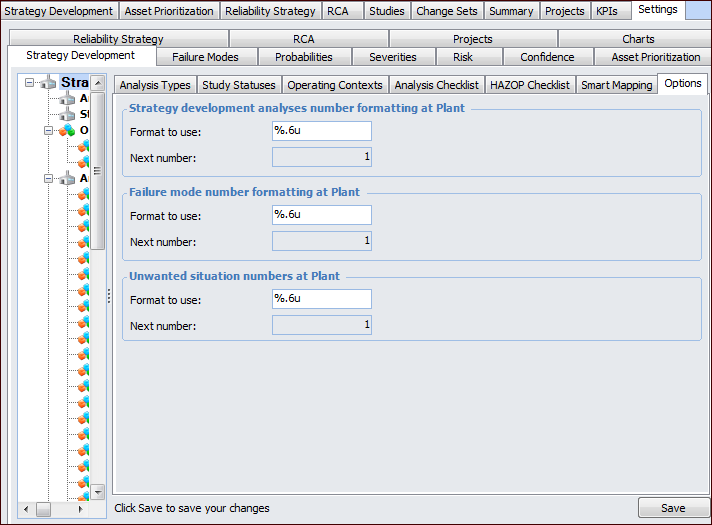

3.	Select the Options tab.

4.	Enter the format to use for analyses, failure modes, and unwanted situations:

Setting Name

Description

Format to use

The format to use for the document numbers. The format determines the number of digits in the document number and whether or not the number should be padded with zeros. Document numbers must be unique for objects within each site. The maximum number of digits in a document number is eight. For example, a format that says “%.6u” would generate six-digit numbers padded with zeros: 001234. • % indicates the start of the number definition. • .6 indicates that the numbers should have six digits. Numbers with less than six digits will be padded with zeros. • u indicates that the number is an unsigned integer (that is, it cannot be a negative number). You can also add a site-specific prefix or suffix to ensure that document numbers are unique across the whole enterprise. Enter a prefix before the % sign. Enter a suffix at the end of the format. For example, you could add the letter “R” as a prefix to refer to the site that owns the object, such as R-001234. In this example, you would enter a format that says: R-%.6u, where R- is the prefix.

5.	When you have finished defining settings, click Save.
