Setting up Inspection Locations

An inspection location describes the area of the asset to be inspected for deterioration, for example, a specific elbow or joint on a piping segment. A location can also be a general area, such as an area exposed to excessive moisture.

To Set up Inspection Locations

1.	On the site’s Strategy Development view, select the Settings tab. Select the Damage Mechanisms tab and the Damage mechanisms settings node in the tree.

Tip: You can also select the site’s Administration menu, Strategy Development Settings, and then Damage Mechanism Library. The Damage Mechanisms Management Settings dialog appears.

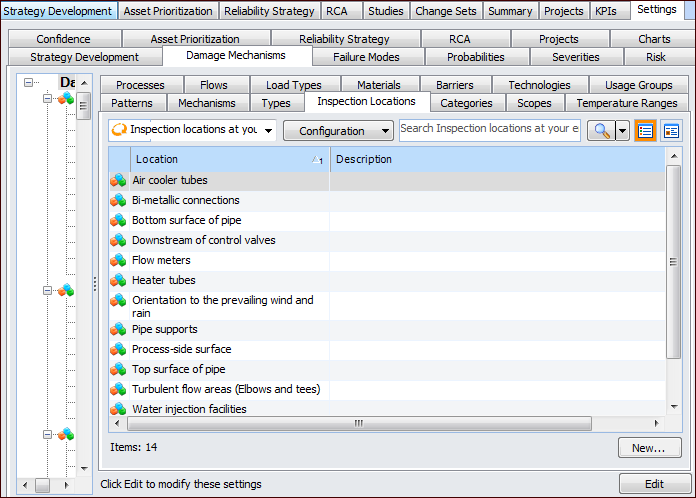

2.	Select the Inspection Locations tab.

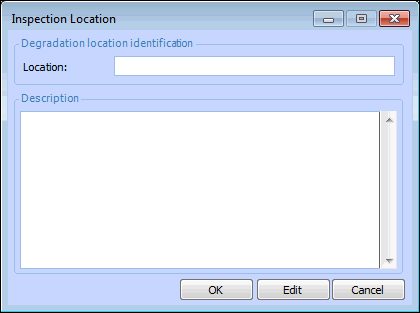

3.	For each of the inspection locations required by your organization, click New. The Inspection Location dialog appears.

4.	Provide a descriptive name for the location, for example, elbow.

5.	Enter a description of the inspection location.

6.	Click OK. The dialog closes and the location is added to the table.
