Performing MTA2 Failure Mode Risk Analysis

In the process of evaluating a failure mode, you can quantify the relative risk (criticality) associated with the failure by evaluating the consequences (severity of the effect), the probability of the failure occurring, and (optionally) the failure’s detectability, assigning values for each factor. APM then calculates the relative risk by multiplying the severity value by the probability value, and then by the detectability value, if it is used.
When the relative risk is established, APM calculates the failure mode’s consequence priority using a set of customer-defined rules. The consequence priority rules can be based on the failure mode’s severity, relative risk, downtime costs, downtime duration, or a combination. For example, the Extreme priority could be assigned to failure modes whose total severity is equal to 5.0.
After you have analyzed the failure modes, you can compare failure modes and identify the relative importance of addressing them. The Risk Assessment view in the Strategy Development Analysis window includes failure mode lists based on criticality, consequence priority, severity, and relative risk, as well as a risk plot, risk matrix, and lists of the evaluations. This view is also available for the asset.
APM provides two ways to perform failure mode risk analysis:
•
Using evaluation forms for in-depth analysis of consequences
•
Using a simpler evaluation that allows you to enter weighted severity values, probability values, and confidence factors
With both methods, APM calculates the relative risk and displays it in the risk matrix chart. The method available in the Maintenance Action Plan window depends on the option selected in the analysis’ risk analysis settings.
For instructions on using the simpler evaluation with weighted severities, see Performing MTA2 Risk Analysis with Weighted Severities.
Note: APM also provides a method of performing risk analysis on safety devices that protect equipment, people, and environments from events such as pressure build-up, fire, or equipment failure. Risk analysis is performed on one or more demand scenarios identified on the failure mode. For more information, see Performing MTA2 Demand Scenario Risk Analysis.
Note: Before you can perform risk analysis, the severities, probabilities, confidence factors, and risk matrix entries must be set up in the site’s risk analysis settings. If you are using evaluation forms, they must also be set up. For more information, see Setting up APM for Maintenance Task Analysis.
This topic explains how:
1.
To Evaluate the Probability of Failure – The probability of failure is the likelihood that the asset will fail due to the failure mode. You can determine the probability score using a questionnaire, by selecting a value directly, or by entering the estimated time between failures without maintenance (ETBF). The options available to you depend on the risk analysis settings.
2.
To Evaluate Economic Effects of Failure – The economic consequence of failure reflects the financial effect of the failure on assets and production. Labor and material costs associated with lost production and with repairing or replacing the damaged equipment are economic consequences. You can use a questionnaire or select a value directly, depending on the risk analysis settings.
3.
To Evaluate Health & Safety, Environmental, and Reputation – Equipment failure can cause hazards in the workplace and environmental damage. Examples are extreme temperatures, noxious fumes, and the release of liquids that cause pollution. Mitigating factors are considered when assessing health and safety and environmental consequences. Reputation consequences measure the impact that negative media attention has on an organization’s ability to operate in good faith. The levels of severity can also be associated with monetary costs. You can use questionnaires or select values directly, depending on the risk analysis settings.
When you have finished the evaluations, the risk matrix shows the resulting priority score. In this example, the results are Medium High (criticality) and Medium (consequence priority):
4.
To Assign a Detectability Value – When support for detectability is enabled in an analysis, the relative risk calculation becomes:
(Economic severity score + Health and safety severity score + Environmental severity score + Reputation severity score) * Probability score * Detectability score = Relative Risk Number (Criticality)
5.
Viewing the Risk Summary – You can view the most recent evaluation results by clicking Summary on the Criticality tab. The Risk Summary dialog displays tabs for each of the questionnaires used in the analysis.
If the appropriate option is enabled in risk analysis settings, the selected entry in the risk matrix sets the recommended task in the primary action plan (select the Implementation view). Condition-based maintenance with or without a frequency can be recommended, as well as modification/redesign.
Tip: You can export criticality evaluations for all the analysis’ failure modes to a Microsoft Excel® file. Then add data to the file and import it back into the analysis. For more information, see Importing Criticality Evaluations into Failure Modes.

To Evaluate the Probability of Failure

1.
Open the failure mode’s Maintenance Action Plan window.
2.
Make sure that editing is enabled.
3.

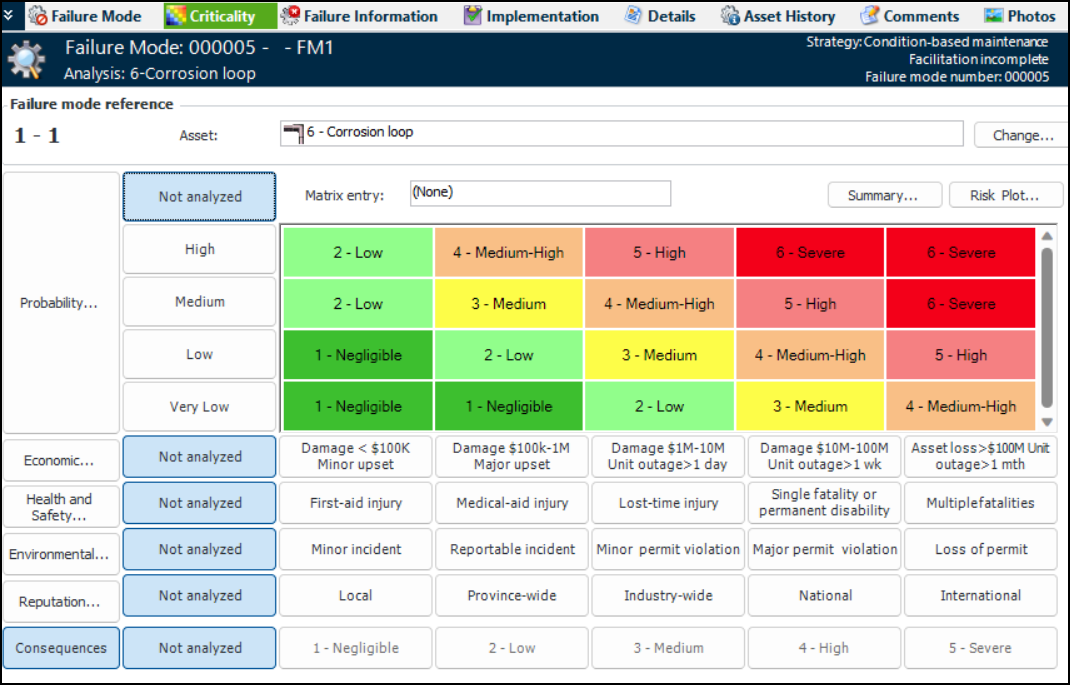

Select the Criticality view. For example:
4.
If probability can be based on the analysis team’s estimate of the time between failures, the Criticality view also displays the Estimated TBF without maintenance area:
Enter the amount of time and the unit of measure. When the failure mode is saved, the corresponding probability is selected in the risk matrix.
5.

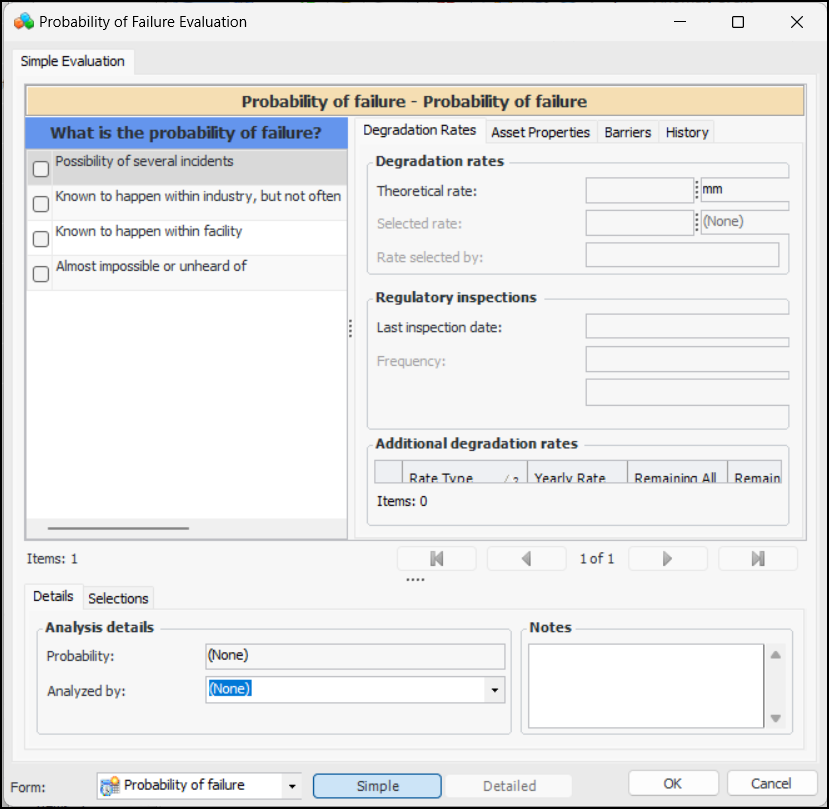

To use a questionnaire, click Probability. The Probability of Failure Evaluation appears. The evaluation types (Simple, Detailed), categories, and questions available to you depend on the form’s design and the asset properties. Here is an example of a simple evaluation:
You can refer to the History and Barriers tabs for information to aid in the evaluation, for example, historical inspections, failures, and work.
6.
Complete the evaluation, selecting options for each category, entering notes, and using the arrow buttons to move between categories. If different evaluation types have been defined in the form’s design, you can select Simple or Detailed, as required by the complexity of the failure mode that you are analyzing.
As you move through the analysis, the Probability box displays the most severe probability assigned to your selections. For example, if you select options for three categories, two of which have a result of “Negligible” and one with a result of “High”, the score for the evaluation as a whole will be “High”. This will be the probability used in the risk analysis.
7.
In the Analyzed by list, select the team member performing the evaluation.
8.
In the Notes box, you can provide additional information about the analysis. Notes are collected and available in several locations.
9.
When you have completed the evaluation, click OK. The evaluation form closes and the result (for example, high, medium, low, or negligible) is selected in the risk matrix. For example:

To Evaluate Economic Effects of Failure

1.

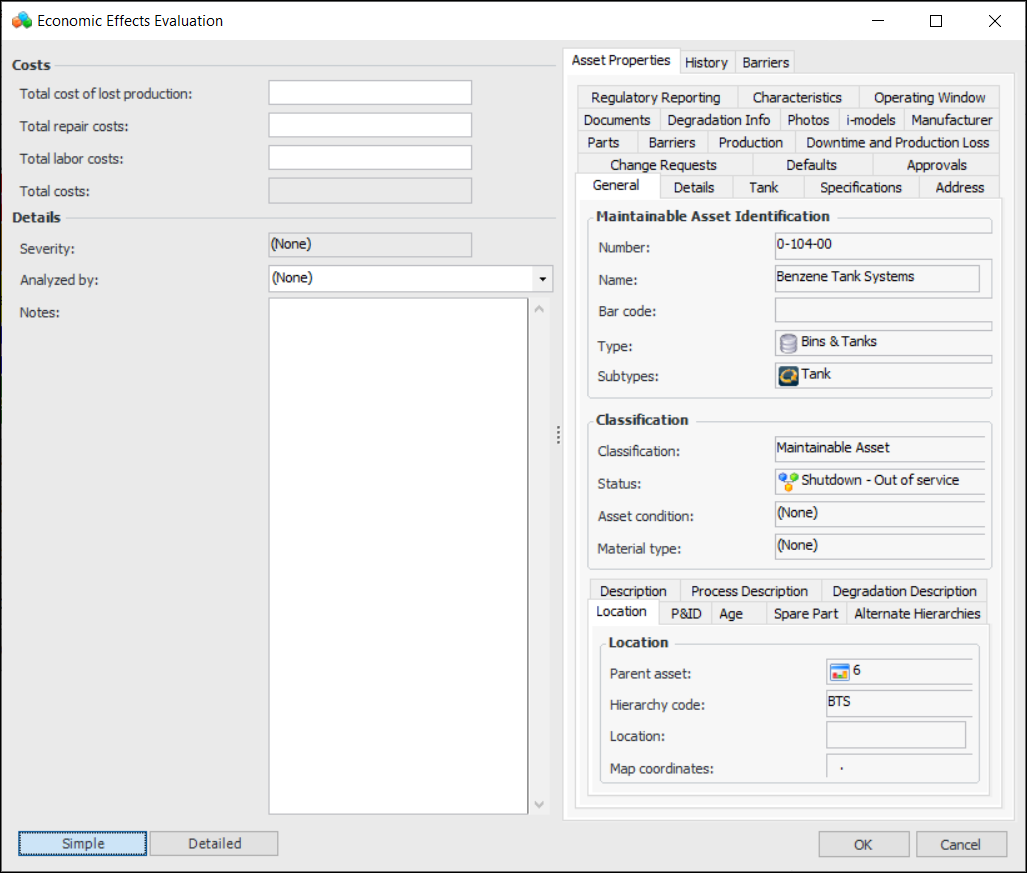

In the risk matrix, click Economic. The Economic Effects Evaluation form appears. For example:
At any time, you can refer to the Asset Properties, History, and Barriers tabs for detailed information about the asset.
2.
For the simple form, provide the following information. If you wish to perform a detailed analysis, skip to step 3.
Setting Name
Description
Total cost of lost production
Monetary cost of asset downtime in the event of failure. The amount is shown in the site’s currency.
Total repair costs
Monetary cost to repair equipment in the event of the asset’s failure. The repair cost does not include labor. The amount is shown in the site’s currency.
Total labor costs
Monetary cost of labor in the event of the asset’s failure. The amount is shown in the site’s currency.
Lost production quantity
In detailed evaluations, lost production quantity is calculated based on the cost equation’s intervals, which specify monetary values and quantities per duration (for example, hours).
Analyzed by
The analysis team member who performed the evaluation.
Note
Additional information about the analysis. Notes are collected and available in several locations.
As you enter amounts in the Total cost of lost production, Total repair costs, and Total labor costs boxes, APM calculates the total amount and the severity.
3.

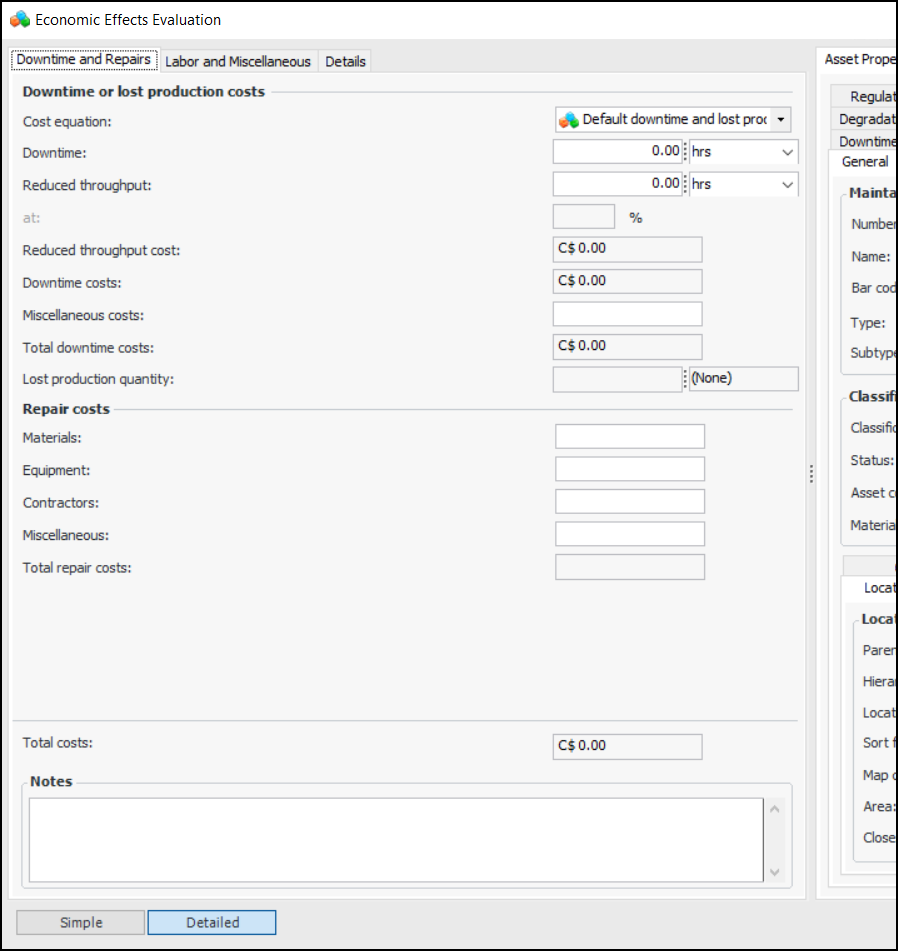

To perform a more detailed evaluation, click Detailed. Here is an example of a detailed form:
As information is added to the form, APM calculates the total costs for the failure and displays the Severity score. All monetary amounts are shown in the site’s currency.
4.
Enter information to calculate lost production costs:
Setting Name
Description
Cost equation
If downtime or lost production costs are calculated for the asset, the default cost equation is selected, if applicable. This is the calculation rule used to determine the costs of a downtime incident or reduced throughput.
Tip: Select the Asset Properties tab and then the Downtime and Production Loss tab to view the production loss cost equation.
Downtime
Period of time that the asset will not function in the event of a failure.
Reduced throughput
When the failure mode results in reduced production instead of downtime, record the amount of time that reduced throughput is in effect.
Operating at
The percentage of production achieved when the failure results in reduced throughput.
Reduced throughput cost
APM calculates the cost of reduced throughput using the reduced throughput amount, the operating percentage, and the cost equation.
Downtime costs
APM calculates the downtime cost using the downtime amount and the cost equation.
Miscellaneous costs
Additional costs not included in the downtime or reduced throughput costs.
Total downtime costs
The total is calculated by summing all of the amounts in the Lost production costs area.
Lost production quantity
In detailed evaluations, lost production quantity is calculated based on the cost equation’s intervals, which specify monetary values and quantities per duration (for example, hours).
5.
Enter information to calculate repair costs:
Setting Name
Description
Materials
Monetary cost for materials to repair equipment in the event of the asset’s failure.
Equipment
Monetary cost for equipment to repair the asset in the event of failure.
Contractors
Monetary cost for contract workers to repair equipment in the event of the asset’s failure.
Miscellaneous
Additional monetary cost to repair the asset in the event of failure.
Total repair costs
APM calculates the total repair costs.
6.

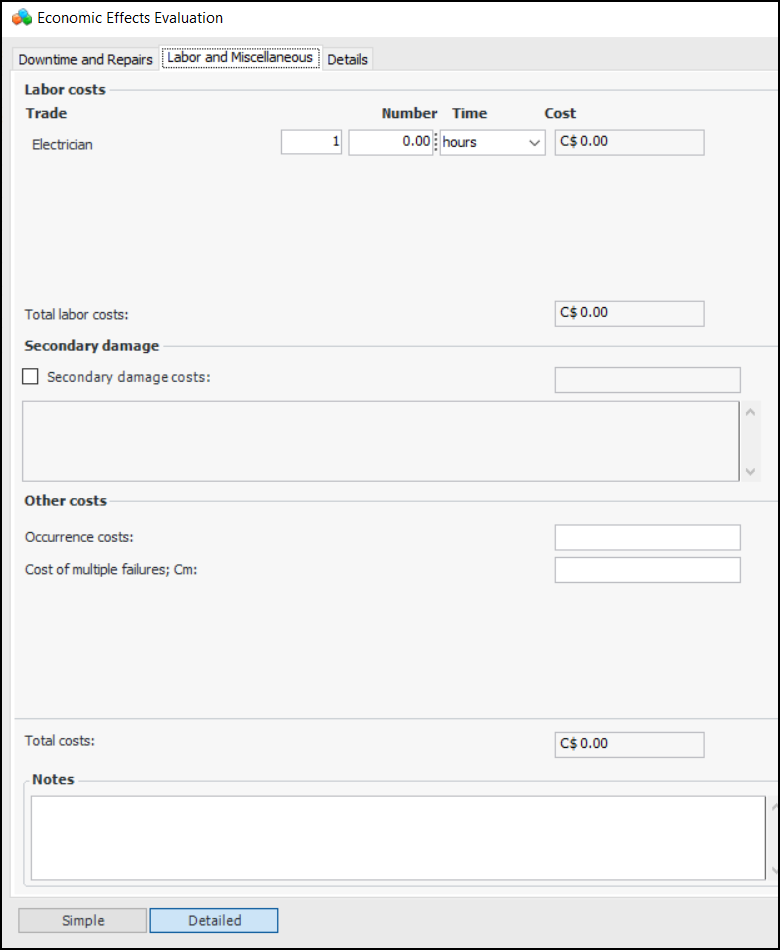

Select the Labor and Miscellaneous tab. For example:
7.
Enter information to calculate labor costs. The number and types of trades listed in the Labor costs area are defined in the Economic Evaluations settings. They vary depending on the trades defined for the site and selected for the evaluation. For each trade, enter the amount of time required to respond to the failure. APM calculates the cost based on the trade’s rate.
8.
Secondary damage is additional damage caused to other assets by the initial or primary failure. If appropriate, select Secondary damage costs and enter an amount and a description of the damage. This information is included in the total costs and shown on the failure mode’s Failure Data tab.
9.
In the Occurrence costs box, enter the estimated fixed cost associated with a downtime occurrence. For example, this could be a fixed cost associated with restarting a machine after it has been shut down.
When failure mode optimization requires Isograph Availability Workbench, this attribute is mapped to project effect per occurrence cost in AWB.
10.
In the Cost of multiple failures box, enter the estimated cost if a protected function fails while its protective device or protective system is in a failed state.
11.
In the Notes box, you can enter additional information about the evaluation. Notes are collected and available in several locations.
12.
Select the Details tab. In the Analyzed by list, select the team member who performed the evaluation.
Note: For information about creating production loss rules, see Setting up Production Loss Rules on an Asset.
13.

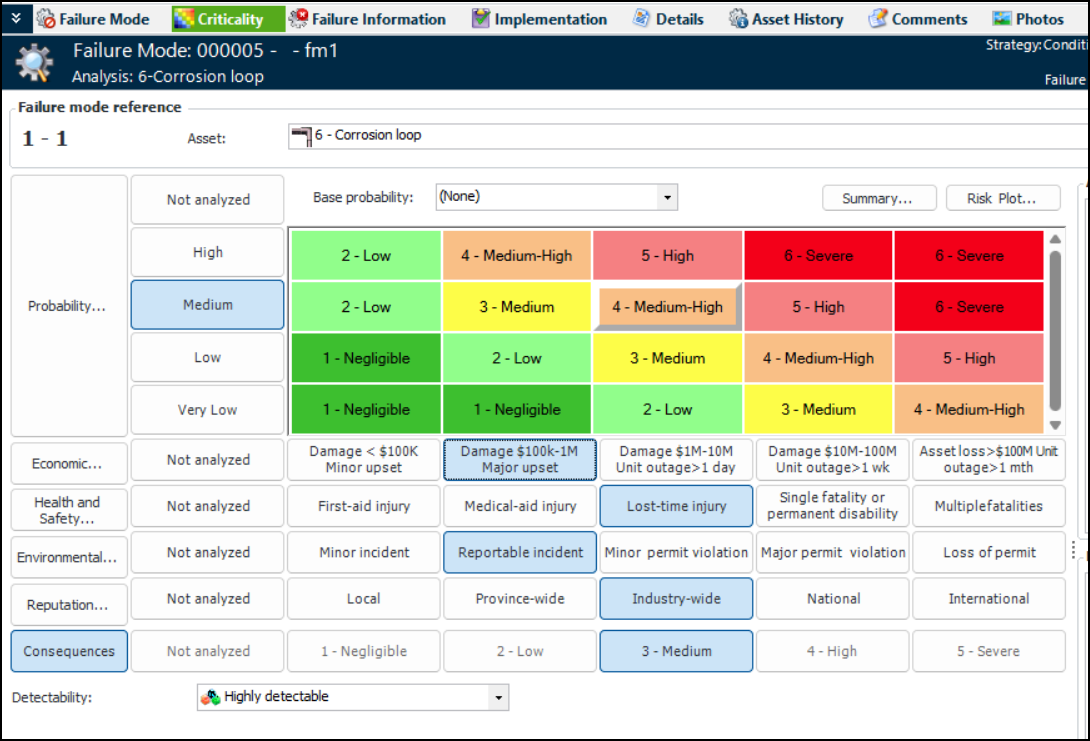

When you are finished the evaluation, click OK. The result of the economic evaluation is shown in the risk matrix. For example:

To Evaluate Health & Safety, Environmental, and Reputation

1.
Click Health and Safety, Environmental, and Reputation in turn. The evaluation form appears. The evaluation types (simple, detailed), categories, and questions available to you depend on the form’s design and the asset properties.
At any time, you can refer to the Asset Properties tab for detailed information about the asset.
2.
Complete each of the evaluations, selecting options for each category, entering notes, and using the arrow buttons to move between categories. If different evaluation types have been defined in the form’s design, you can select Simple or Detailed, as required by the complexity of the failure mode that you are analyzing.
As you move through the analysis, the Severity box displays the most severe score assigned to your selections. For example, if you select options for three categories, two of which have a result of “Negligible” and one with a result of “High”, the score for the evaluation as a whole will be “High”. However, if a mitigation category has been defined for the evaluation, its score can raise or lower the severity. The resulting ranking is used in the risk matrix.
3.
In the Analyzed by list, select the team member performing the evaluation.
4.
In the Note box, you can provide additional information about the analysis. Notes are collected and available in several locations.
5.

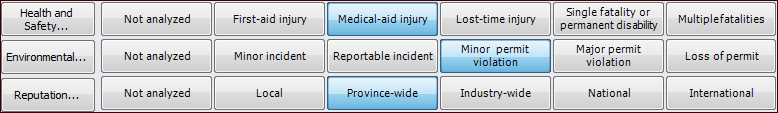

When you have completed an evaluation, click OK. The evaluation form closes and the result is selected in the risk matrix. For example:

To Assign a Detectability Value

1.
In the Criticality view, select the appropriate value from the Detectability list below the risk matrix. This number is used in the relative risk calculation.

Viewing the Risk Summary

1.

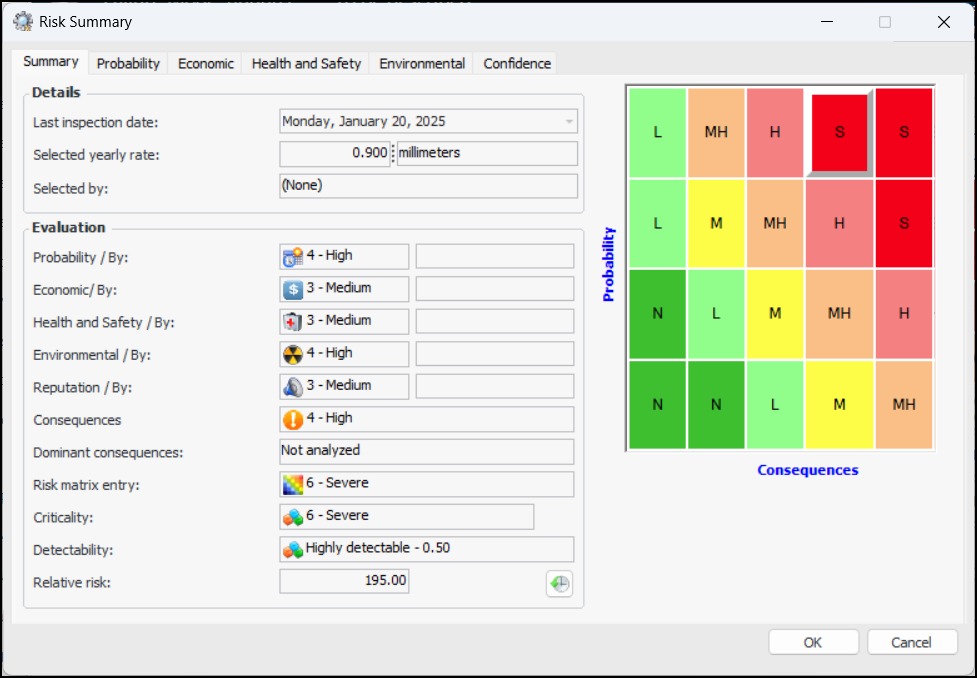

In the Criticality view, click Summary to display the results of the risk analysis. For example:
A tab is displayed for the confidence evaluation and each of the questionnaires that were used to evaluation probability of failure and consequence severities.
2.
Select a tab to view information about the questionnaire.
3.
Click Close to dismiss the window.
When you have performed risk assessments for all of the failure modes in the analysis, you can compare them using the Risk Assessment view. For more information, see Viewing Risk Analyses for MTA2 Failure Modes.
