Viewing a Failure Record’s Source

For each failure, APM records information about its origin. Possible sources are:

•	Indicator Alarm Acknowledgment: The indicator that was acknowledged is listed, along with the work order task (if any), indicator reading, and the date and time at which the acknowledgment took place.

•	Work Order Task: When a failure is created from a work order task, the task number and title are recorded.

•	Work Request: When a failure is created when a work request is linked to a work order or when an indicator alarm is acknowledged with a work request, the work request number and title are recorded.

•	Checksheet: When a failure is created from an indicator checksheet, the checksheet number and title are recorded.

•	Indicator Reading: When a failure is created from a reading, the indicator reading or measurement point reading is recorded.

•	Inspection report: When a failure is created from an inspection report, the report title is recorded.

•	Scratch: When a failure record is created by clicking New in the site’s or asset’s Performance Management view, Failures tab, the failure is created “from scratch”.

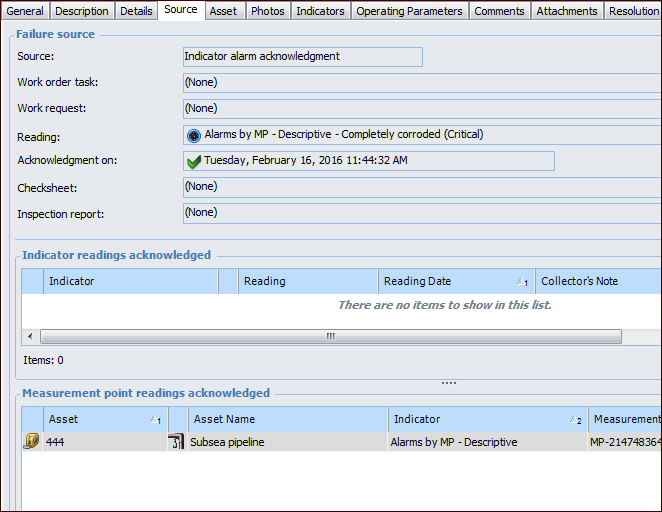

To View a Failure Record’s Source

1.	Open the Failure or Anomaly window and select the Properties view.

2.	Select the Source tab.
