Viewing Information About a Design FMECA

There are several ways to view detailed information about a design FMECA in the analysis window:
•

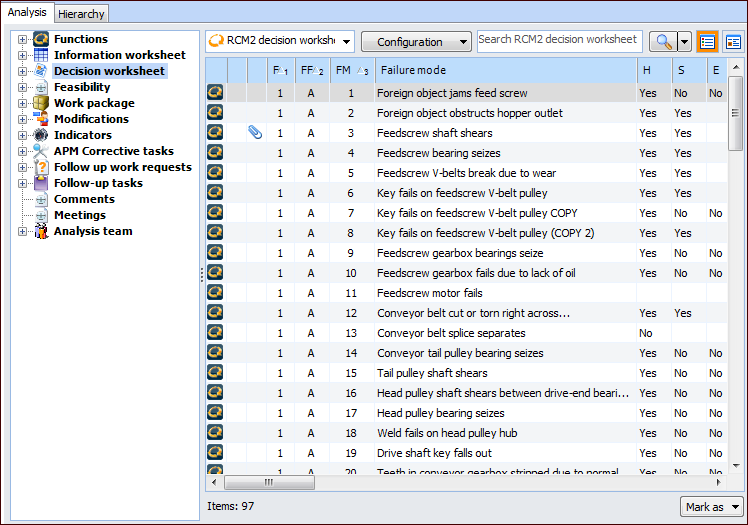

To take a comprehensive look at the FMECA, select the Explorer view. The Analysis tab displays a tree of the items associated with the analysis, such as functions, worksheets, feasibility assessments, and team members. The table to the right shows information about the item selected in the tree. For example, select Decision worksheet node to see a list of failure modes and their evaluations:
Tip: Select to view detailed information about individual failure modes.
•
To view detailed information about an analysis’ failure modes, recommended tasks, action types, tasks, and indicators, select the Implementation view, Action Plans tab.
•
To review how the analysis is implemented, select the Implementation view and the Implementation Audit tab. This tab offers configurations showing inspection tasks without indicators, scheduled restoration tasks without corrective tasks, modifications without a project, and more.
•
To view counts of action plans, indicators, and corrective tasks, select the Analysis Summary view. This view also lists the symptoms assigned to failure modes on the Fault Guide tab.
•
To view tables of action plans according to action type, select the Action Plans view and then choose the action type from the list of configurations. This view also shows a chart comparing the plans by action type and detailed information about the template on which the analysis is based.
•
To view the changes made to the analysis over time, select the History view. The History view displays the Analysis Audit Info, Asset Audit Info, Status, Functions, Functional Failures, Failure Modes, Action Plans, Criticality, Interval Calculators, and Copy Requests tabs.
This topic explains the information displayed on the Analysis Summary view and the History view.

To View an Analysis Summary

1.
From the site’s Strategy Development view, select the Design tab and the Analyses tab.
2.
Double-click the design FMECA that you wish to view. The Strategy Development Analysis window appears.
3.
Select the Analysis Summary view.

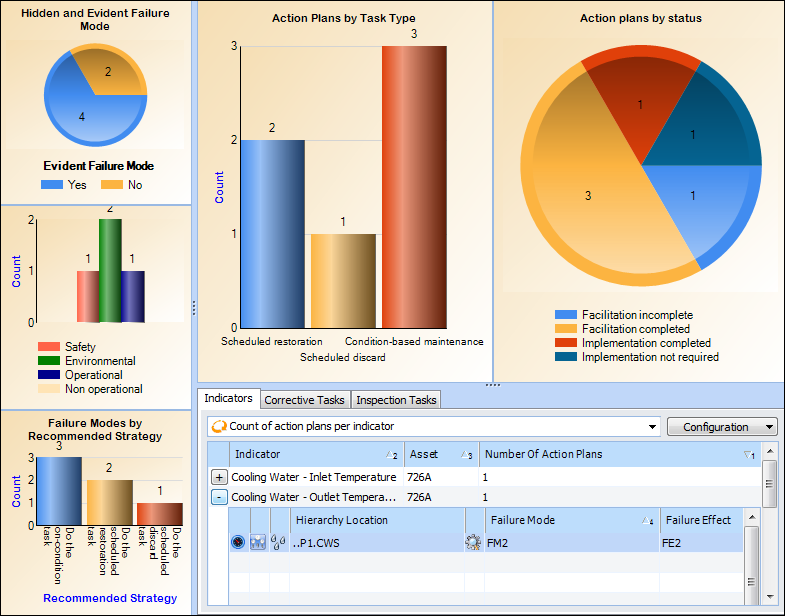

Tip: The charts shown in the following example are set up as sidebar dashboards and assigned to employees. For more information, see Dashboards.
This view displays the following:
•
The Indicators tab shows counts of the action plans for indicator. Click to expand an indicator’s list of action plans.
•
The Corrective Tasks tab shows counts of the standard tasks and jobs. Click to expand the list of tasks or jobs.
Tip: If APM has been configured for read-only access to an external CMMS (SAP Plant Maintenance), any references to corrective tasks in that system are also displayed in the count of tasks.
•
The Inspection Tasks tab shows a list of the inspection standard tasks assigned to action plans.
•
The Critical Parts tab lists the materials requested on action plans to perform the actions.
•
If you record symptoms on failure modes, select the Fault Guide tab to view the symptoms identified in the analysis.

To View Analysis History

In the Strategy Development Analysis window, select the History view.
This view displays:
•
On the Analysis Audit Info tab, the By Event and By Data Element tabs list the actions performed on the analysis, the date when each action was performed, and the APM user who performed it. Whether you view the actions according to event or data element, you can see the new and old values for each data element.
•
On the Analysis Audit Info tab in the example, the By Event tab displays an icon for the audit report created when the analysis was marked “Closed”. Double-click a report icon to open the document.
Tip: The type of report and its format (for example, PDF or plain text) are defined in the analysis type assigned to the analysis. For information about enabling this feature, see Setting up Analysis Types.
•
The Asset Audit Info tab displays actions performed on the asset by event and by data element.
•
The Status tab displays the dates on which milestones were completed on the analysis, as well as its current status.
•
Audit information is displayed for each of these objects in the analysis: Functions, Functional Failures, Failures Modes, Action Plans, Criticality evaluations, and Interval calculations.
•
The Copy Requests tab lists occasions when the current analysis was copied, including the status of the copy, the target analysis, and the APM user who performed the action.
•
The Activity Reports tab lists the asset activity reports for this analysis, and the asset activity reports in which this analysis is included.
