Capital and Operational Project Management

APM project functionality allows you to track projects in your organization with respect to costs, hierarchy relationships, and status. The costs and completion status of a project are tracked through the work orders charged to the project. Most project work is done through work order tasks. Your projects can be tied to GL account segments that are applicable to the particular cost types within the project, such as materials, labor, and parts.

Projects can be linked to several types of analysis and objects such as failures and safety provision versions.

The following sections outline concepts related to projects.

Note: APM also supports reliability projects, which are used to track analyses and other objects, usually in APM implementations that exchange data with external CMMS systems using AWEIS. These projects use project tasks, rather than work orders, to track work. For more information, see Reliability Project Management.

This topic explains:

•	Capital Projects

•	Operational Projects

•	Project Hierarchy

•	Approvals Process

•	Project Cost Tracking Overview

•	Project Planning

•	Work Breakdown Structure

•	Project Hierarchy Code and Location

•	Project Status and Events

Capital Projects

Capital projects are new construction, major repair, or improvement where the cost is capitalized rather than expensed. Capital projects increase the total asset value of the organization. Typically, they have the following attributes:

•	Resource requirements and timetables are defined prior to beginning activity

•	Budgets are created prior to beginning activity

•	Approvals are required prior to beginning work

The APM project’s functionality is intended for use with maintenance projects.

Operational Projects

Operational projects are new construction, major repair, or improvement where the cost is expensed. Within APM, there are no significant differences in the functionality of operational and capital projects. The difference lies in the accounts charged. The account charged is determined on a project by project basis.

TOP

Project Hierarchy

The project hierarchy allows you to break a project down into any number of sub-projects and levels. In addition to providing a graphical view of the project structure, the project hierarchy is used to push a project’s approval status down the hierarchy. When a higher-level project is approved, sent for approval, redrafted, or rejected, the status can be applied to the project’s sub-projects.

The hierarchy is also used to:

•	Push the GL account down the project hierarchy. The project hierarchy functions the same way as the asset hierarchy. If a GL account is not defined on a project, the GL account segment from a higher-level project is used

•	Summarize estimated cost up the project hierarchy. Project estimated costs are rolled up the hierarchy. Each project’s estimated cost is combined with the total estimates of its lower-level projects. The resulting total is stored as a separate attribute on the project

If the project hierarchy spans sites with different currencies, the estimated costs and cost summaries of the sub-projects are converted to the currency used at the parent project’s site

•

Summarize planned and actual costs. The project’s planned and actual costs are rolled up the hierarchy. A project’s planned costs are equal to the planned costs of the work order tasks that reference the project, plus the planned costs of the work order tasks that reference the project’s sub-projects

The project’s actual costs are equal to the costs charged to the project’s work order tasks, plus the costs charged to the project’s sub-projects.

•	Push approval status down the hierarchy. When a higher-level project is approved, sent for approval, redrafted, or rejected, the status can be applied to the project’s sub-projects

Approvals Process

Your site’s approval settings determine if projects require approval. When a project is sent for approval, the route selected is based on the project that is being approved. Each approval route for projects can identify the project or projects it can be used with. Alternatively, on the project itself, you can add the project to a new or existing route. Approval route selection is not based on the project’s GL account segment.

For approval purposes, the value of the project is determined as follows:

•	If the project does not have planned costs, the project’s estimated cost is used. The estimated cost includes the cost of the project’s sub-projects

•	If the project has planned costs, the project’s total planned cost is used. The planned costs used include the sub-projects’ planned costs

The system uses the project hierarchy to push the project’s approval status down to the sub-projects. When a project’s approval status changes to “sent for approval”, “approved”, “rejected”, or “redrafted”, the status is also applied to all of the project’s sub-projects. The project’s approval status is not applied to sub-projects that are being approved separately.

Project statuses are flexible. Depending on your site settings, certain actions (such as editing) might or might not be allowed when a project is waiting for approval, approved, or rejected.

See Approving Documents for more information on the approval process in APM.

Effect of the Project Hierarchy on Approvals

The project hierarchy is used in two ways by the approval process. First, the costs of a project’s sub-projects are rolled up the hierarchy to determine the value of the project for approval purposes.

The second way in which the hierarchy is used is to push the approval status down the hierarchy. When a project is approved, sent for approval, redrafted, or rejected, the status is also applied to the project’s sub-projects. In case this approach is not appropriate, a rule has been included on the project to allow you to indicate if the project’s approval originates with a higher-level project and approval is pushed down the hierarchy, or if the project is approved separately. If the project is approved separately, the approval status from the higher-level project is not applied; the project is sent for approval independently.

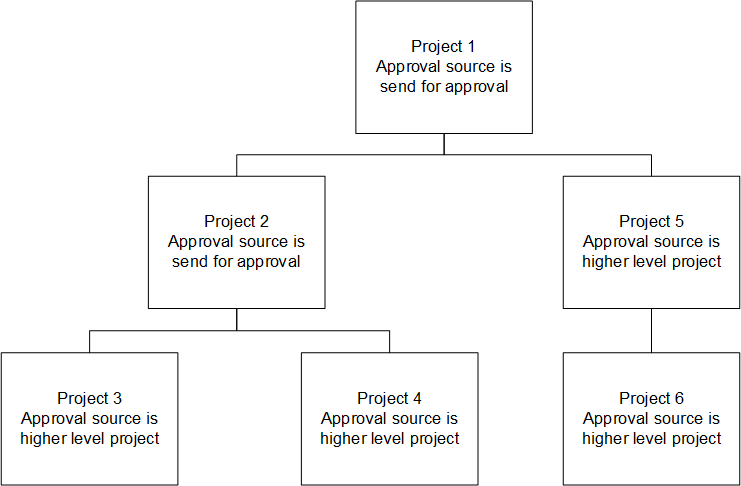

To illustrate, here is the approval process for the project structure:

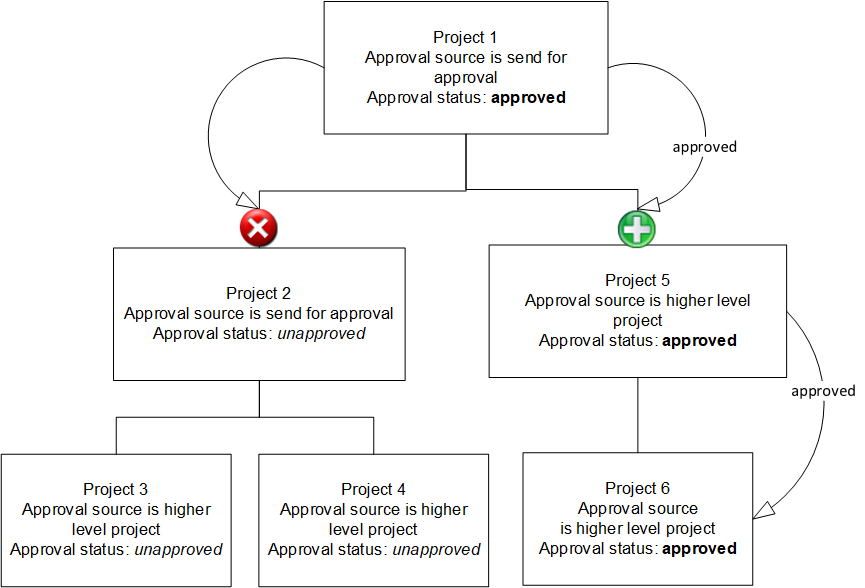

When project 1 is approved, its approval status is pushed down as follows:

•	Project 2’s approval status is not updated. Project 2 is being approved separately

•	Project 3’s approval status is not updated. Project 3 does get its approval status from higher-level project. In the case of project 3 the higher-level project is project 2

•	Project 4’s approval status is not updated for the same reasons as Project 3

•	Project 5’s approval status is updated. Project 5 accepts its approval status from its higher-level project

•	Project 6’s approval status is updated. Project 6 accepts its approval status from its higher-level project

Project Cost Tracking Overview

A project’s planned costs are based on the project’s work order tasks’ planned costs. Work order tasks are the only means of developing planned costs for a project.

As with planned costs, a project’s actual costs are based on the project’s work order tasks and the resource transactions charged to those work order tasks. Resource transactions cannot be charged directly to a project. All project costs originate with resource transactions charged to work order tasks.

Total Cost Types

Using work orders and tasks as a point of reference, the total cost for the work order or task is tracked by including a reference on the work order to its total cost summary. This reference allows you to view the work order’s total costs, planned and actual, as a control, a page or dialog, as a table column, and on reports.

Because projects use work orders to track costs, the same concept applies to projects and includes references to the following sub-totals:

Setting Name

Description

Labor costs

The summary cost type that sums all labor costs for your site. You can select a cost type that is set available for labor expenses. Total cost types are used to summarize planned and actual costs for use in tables, reports, and various summary views throughout APM, including projects and work orders. If you do not set a total labor cost type for the site, the total labor costs shown might be incorrect. Note: You should also ensure that this cost type is in the cost type hierarchy. This will ensure that costs are correctly summarized (rolled-up) in the summary and top cost types.

Stores material costs

The summary cost type that sums all materials costs for your site. You can select a cost type that is available for material expenses. Total cost types are used to summarize planned and actual costs for use in tables, reports, and various summary views throughout APM, including projects and work orders. If you do not set a total stores material cost type for the site, the total stores material costs shown might be incorrect. Note: You should also ensure that this cost type is in the cost type hierarchy. This will ensure that costs are correctly summarized (rolled-up) in the summary and top cost types.

Direct purchase costs

The summary cost type that sums all direct purchases costs for your site. You can select a cost type that is available for materials expenses. Total cost types are used to summarize planned and actual costs for use in tables, reports, and various summary views throughout APM, including projects and work orders. If you do not set a total direct purchase cost type for the site, the total direct purchase costs shown might be incorrect. Note: You should also ensure that this cost type is in the cost type hierarchy. This will ensure that costs are correctly summarized (rolled-up) in the summary and top cost types.

Cost of Services

The summary cost type that sums all service costs for your site. You can select a cost type that is available for services expenses. Total cost types are used to summarize planned and actual costs for use in tables, reports, and various summary views throughout APM, including projects and work orders. If you do not set a total services cost type for the site, the total services costs shown might be incorrect. Note: You should also ensure that this cost type is in the cost type hierarchy. This will ensure that costs are correctly summarized (rolled-up) in the summary and top cost types.

Tools costs

The summary cost type that sums all tools costs for your site. You can select a cost type that is available for tools expenses. Total cost types are used to summarize planned and actual costs for use in tables, reports, and various summary views throughout APM, including projects and work orders. If you do not set a total tools cost type for the site, the total direct tools shown might be incorrect. Note: You should also ensure that this cost type is in the cost type hierarchy. This will ensure that costs are correctly summarized (rolled-up) in the summary and top cost types.

These sub-totals are used by projects and work orders alike to summarize planned, actual, and remaining costs in charts, tables, and graphs. The sub-totals are only valid if you have an appropriate cost type and you point APM to it. For example, if you do not have a total labor cost type or do not point APM to it, the total labor costs for projects will be incorrect.

Project Planning

Project planning activities are performed on projects and through work order tasks. The project is used to identify basic information, while the work orders charged to the project are used in the detailed, task-level planning. The project planning information includes:

•	Project title and description – identifies the project and its purpose

•	Project manager – identifies the person responsible for the project

•	Project type and classification – groups projects for filtering and sorting purposes

•	Project start and end dates and project life – identifies the expected life-time of the project

•	GL account segment – identifies where the projects costs are being charged

•

Estimated cost – an initial estimate of what the cost of the project will be. This is the estimate for the costs for this project only. It does not include the costs for the project’s sub-projects. An estimated cost is entered for each of the sub-projects. The sub-project estimates are totaled and added to the estimate for the project to provide a total cost estimate

Work order tasks are used to provide a more detailed plan for the project. Detailed resource requirements planning is included, for example, labor requirements, stores materials requirements, and direct purchases. Resource requirements are not directly planned on the project.

A project reference is included on the work order task. Any number of work order tasks can reference the same project. The work order task’s project reference is used to:

•	Derive the work order task’s GL account segment. The project’s GL account segment supersedes the asset to charge GL account segment

•	Derive the project’s planned and actual costs

TOP

Work Breakdown Structure

The work breakdown structure values are used to predefine common project activities. A set of work breakdown structure (WBS) codes is referenced on each project. These are the WBS codes used with the project’s tasks. A WBS code is also specified on the work order tasks and work requests that refer to a project.

Project Hierarchy Code and Location

The project’s hierarchy code and location serve the same purpose as the asset hierarchy code and location.

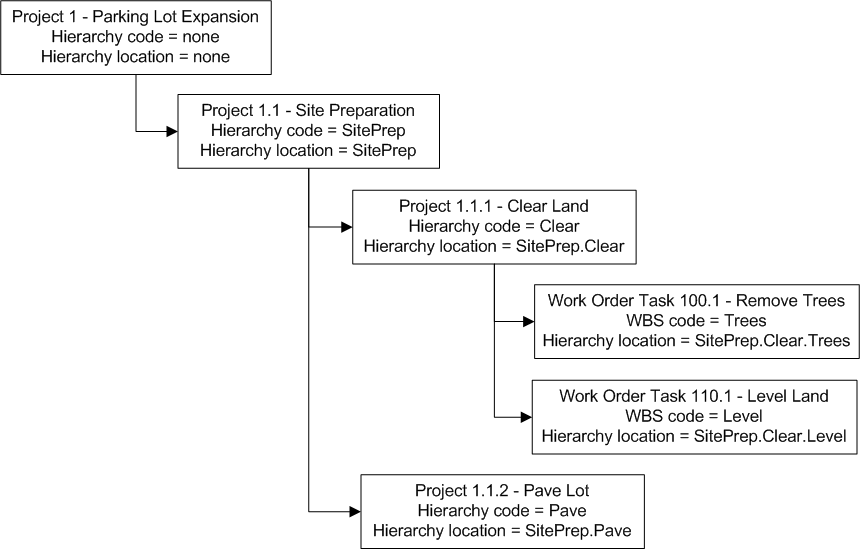

The project hierarchy code allows you to identify a project’s location within the project hierarchy. The hierarchy location contains the project’s hierarchy code concatenated with the hierarchy codes from the project’s parents and higher-level ancestors.

The hierarchy location on the work order task consists of the task’s WBS code plus the hierarchy location from the task’s project. The work order task’s hierarchy location is only used on tasks that reference a project. Here is an expanded WBS code example:

TOP

Project Status and Events

Project status consists of user-defined values that are used to track the progress of each project. Project events and project status controls are linked to project status. The events determine the automatic status changes upon a common project activity, such as sending a project for approval. The controls linked to each status determine the actions that can be taken when a project has a particular status.

Project Events

Events settings allow you to define the status for a number of predefined project actions. The project’s status is automatically changed when the action is performed. For example, when a project’s work orders are closed, its status is automatically set to “closed”.

A project status can be associated with the following actions:

•	New project is created

•	Project is sent for approval

•	Project is approved

•	Project is rejected

•	Project is redrafted

•	All planned work is closed

Project Status Controls

Project statuses allow you to control the actions that can be performed on a project. The project’s status is shown in the Project window in the Properties view, General tab. Each project status definition includes the activities that are allowed for that status. For example, whether or not the project’s properties can be changed is controlled by the project status.

The following activities can be controlled by the project status:

•	Project Definition – Controls whether or not the project’s properties can be changed

•	Project Structure – Controls whether or not the project’s structure can change. If project structure is allowed to change:

•	New sub-projects can be added to the project’s structure

•	Existing sub-projects can be removed from the project’s structure

•	Sent for Approval – Controls whether or not the project can be sent for approval

•	Analysis Requests – If the project was created to track a request for a strategy development or reliability strategy selection analysis, this option controls whether or not the request can be processed

•	Work Orders Planned – Controls whether or not the project can be referenced on a work order task

•	Purchase Orders Created – Controls whether or not purchase orders can be created to order the project’s materials, services, or equipment rentals

•	Work Orders Scheduled – Controls whether or not the project’s work order tasks can be scheduled

•	Resource Transactions Posted – Controls whether or not resource transactions that are being charged to the project can be posted



Approval Process Examples

To effectively use the approvals process and activity controls with projects, you must set up your project statuses in a logical fashion. The project status definition determines the actions that can or cannot be carried out when the project has that status. For example, if you set up a status called “Approved”, it makes sense to disallow the activity “Project may be sent for approval”.

The following table outlines a suggested set of statuses and their controls for use with approvals functionality. Using these settings ensures that the project retains an audit trail where appropriate. You can choose to use these statuses or create your own, depending on your circumstances. The documentation, however, assumes that the status “Approved” is as shown below.

Status and description	Control	Permissions
Engineering in Progress A project with this status is new and in the planning stage. No work can be done on it until planning is finalized and the project is approved. Link this status to the Creation event	Definition Changed	Enabled
	Sub-Projects Changed	Enabled
	Sent for Approval	Enabled
	Analysis Requests Processed	Enabled
	Work Orders Planned	Enabled
	Purchase Orders Created	Disabled
	Work Orders Scheduled	Disabled
	Resource Transactions Posted	Disabled
Sent for Approval A project with this status is fully planned and is now waiting for approval. Link this status to the Sent for Approval event.	Definition Changed	Disabled
	Sub-Projects Changed	Disabled
	Sent for Approval	Enabled
	Analysis Requests Processed	Disabled
	Work Orders Planned	Disabled
	Purchase Orders Created	Disabled
	Work Orders Scheduled	Disabled
	Resource Transactions Posted	Disabled
Redrafted A project with this status can be revised. Typically, the request for approval has been returned unapproved or you wish to make changes before the project is approved. Link this status to the Redrafted event.	Definition Changed	Enabled
	Sub-Projects Changed	Enabled
	Sent for Approval	Enabled
	Analysis Requests Processed	Enabled
	Work Orders Planned	Enabled
	Purchase Orders Created	Disabled
	Work Orders Scheduled	Disabled
	Resource Transactions Posted	Disabled
Approved A project with this status is approved and work is now started. Link this status to the Approved event. You might decide to keep this status for the remaining life of the project or create another.	Definition Changed	Disabled
	Sub-Projects Changed	Disabled
	Sent for Approval	Disabled
	Analysis Requests Processed	Disabled
	Work Orders Planned	Disabled
	Purchase Orders Created	Enabled
	Work Orders Scheduled	Enabled
	Resource Transactions Posted	Enabled
Rejected A project with this status was rejected in the approvals process. No activity can be carried out. Link this status to the Rejected event.	Definition Changed	Enabled
	Sub-Projects Changed	Enabled
	Sent for Approval	Enabled
	Analysis Requests Processed	Enabled
	Work Orders Planned	Enabled
	Purchase Orders Created	Disabled
	Work Orders Scheduled	Disabled
	Resource Transactions Posted	Disabled
Canceled A project with this status is canceled and no more activity can occur. You should define the status to cancel all open work orders attributed to this project.	Properties Changed	Disabled
	Sub-Projects Changed	Disabled
	Sent for Approval	Disabled
	Analysis Requests Processed	Disabled
	Work Orders Planned	Disabled
	Purchase Orders Created	Disabled
	Work Orders Scheduled	Disabled
	Transactions Posted	Disabled



Canceled Project Status

We recommend creating a project status called “Canceled”. The “canceled” status should be allowed to be set manually, on the Options tab, and should cancel all open work orders and tasks attributed to the project, in the status’ Events area. Creating a “canceled” status ensures that all open work on a project is canceled in the event that the project is canceled. You can also have a similar status for On-hold projects, for example.
