Assigning a Gauge to Calculation Results

When defining a triggered or asset degradation calculation, you can define a gauge type for displaying the results of the calculation.

This topic describes how to assign a gauge type to a triggered or asset degradation calculation.

For information on how to assign a gauge to asset health calculation results, see Assigning Asset Health Calculation Details.

To Assign a Gauge to Calculation Results

1.	Open a calculation and select the Gauge tab.

2.	Make sure that editing is enabled.

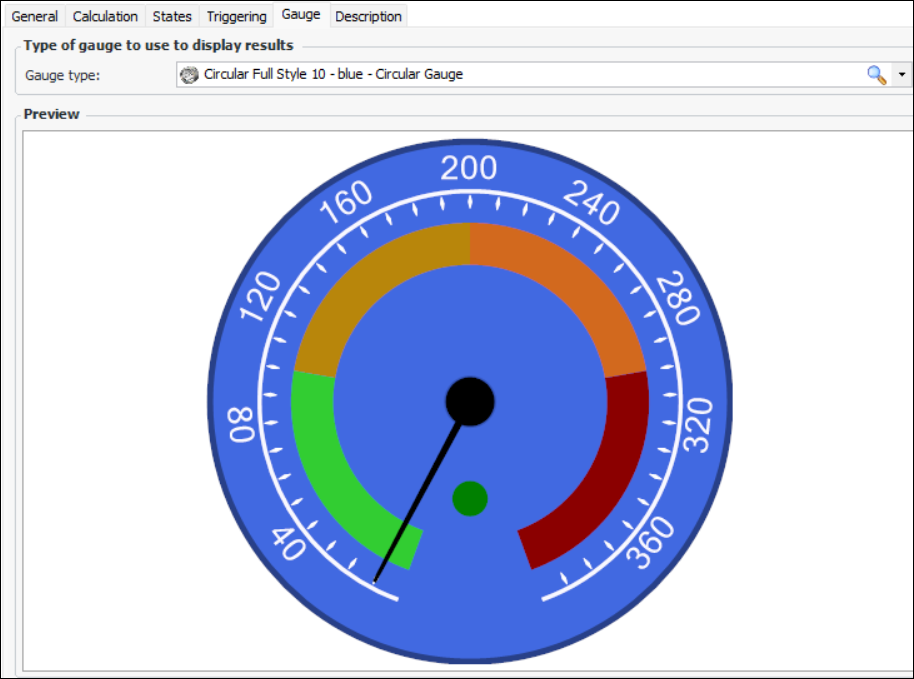

3.	Select a gauge type from the list. A preview of the gauge type appears below. For example:
