Identifying Assets for Condition Analysis

When you apply the results of a condition analysis, you can choose to update the assets’ descendant assets. This approach is based on the premise that the equipment and components contained in a system are, for the most part, of the same condition as the system. Therefore, the analysis is performed at the system level. This reduces the effort required to perform the analysis by analyzing a smaller number of assets.

This approach does not work when an individual piece of equipment’s or component’s condition is different from that of the system. For example, if there is a built-in backup for a particular component, the back-up component’s condition might be less than that of the system. In this case, the asset can be added to the analysis and analyzed separately.

This topic explains how to select assets to be analyzed. You can specify which of an asset’s descendants are to be analyzed separately. The descendant asset’s condition analysis results are seen separately from the parent’s, and the parent’s scores do not override the descendant’s scores.

Note: If you selected a primary asset on the General tab, it is automatically added to the Assets tab. You can click Browse to select from the primary asset’s descendants.

To Identify Assets for Condition Analysis

1.	In the Asset Analysis window, Properties view, select the Assets tab.

2.	Make sure that editing is enabled.

3.	Click New. The New Asset for Analysis dialog appears.

Tip: Click Browse (instead of New) to quickly add a descendant of the primary analysis asset. The Asset Selector window appears, where you can select assets to add to the analysis.

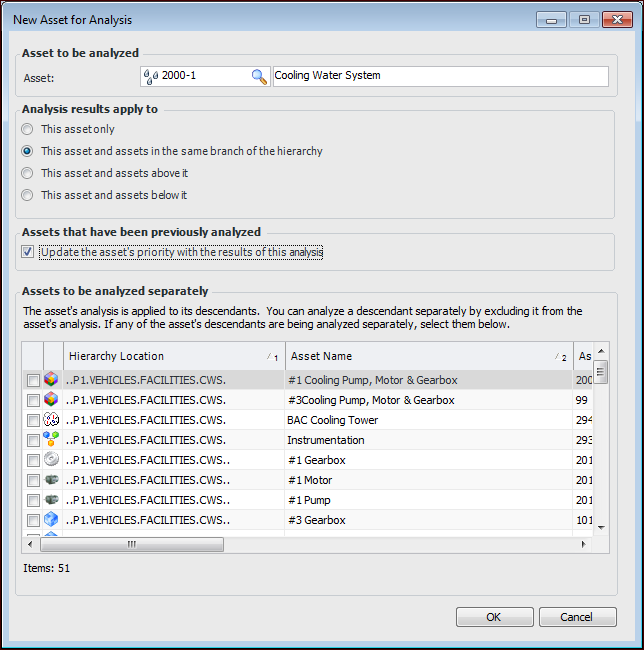

4.	Click the browse icon () and select the asset you wish to analyze. The asset and its descendants appear in the dialog. For example:

5.	The Analysis results apply to options are copied from the defaults on the analysis’ Options tab. You can change them here for the current asset.

6.	If Update the asset’s priority with the results of this analysis is selected, previously analyzed assets are updated when the results of the current analysis are applied. This option takes into account the selected Analysis results apply to option.

7.	If you wish to analyze any of the descendant assets separately, select them in the list. Selected assets are added to the analysis to be analyzed separately.

Note: You can also perform this step after you have added the parent asset to the analysis. Double-click it in the Assets tab to open the Asset Analysis window. Select the Descendants tab, select the assets to analyze separately, and click OK.

8.	Click OK. The assets appear in the asset list of the analysis.
